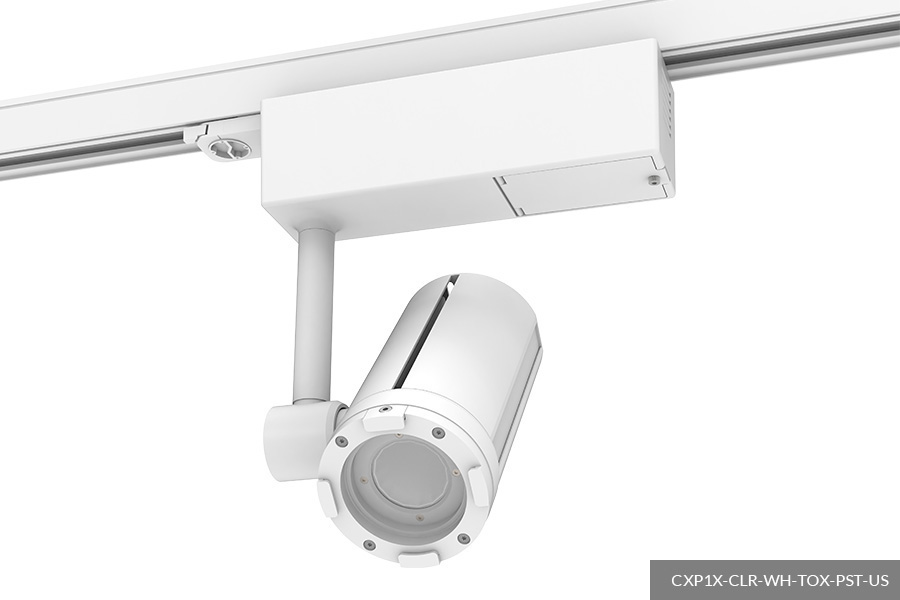

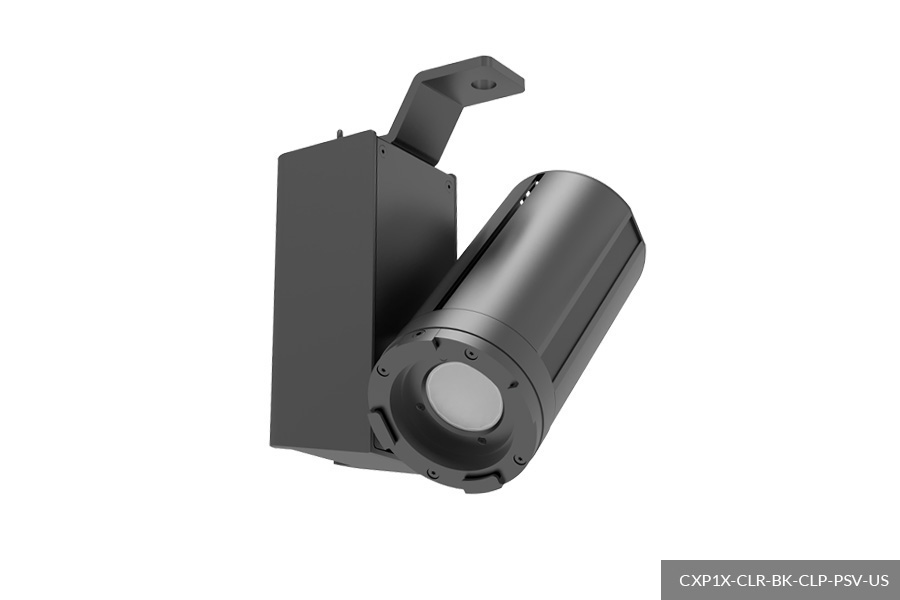

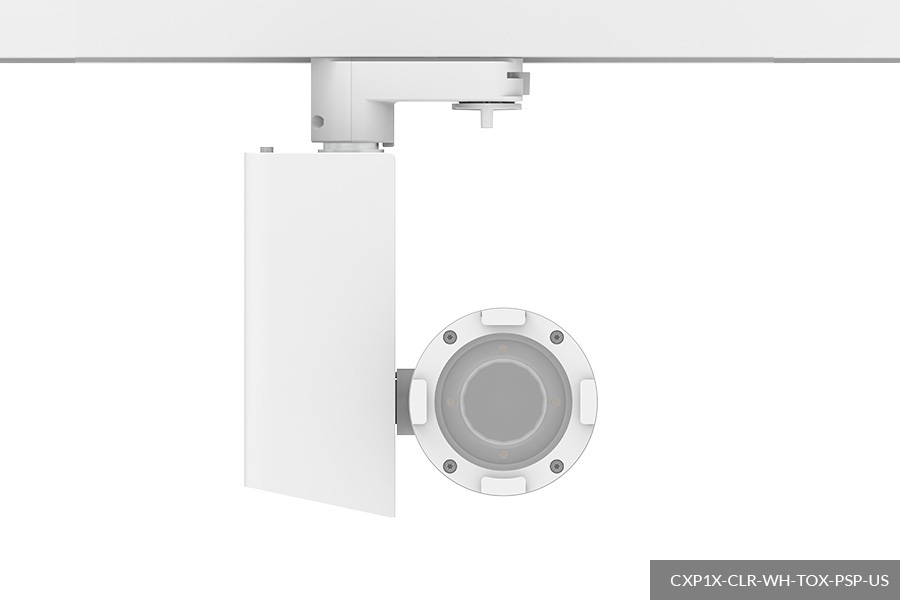

P1X Spot Light

40W LED / 60°

Model No: CXP1X-

  • Cielux P1X Spot Light
  • Cielux P1X Spot Light
  • Cielux P1X Spot Light
  • Cielux P1X Spot Light
  • Cielux P1X Spot Light
  • Cielux P1X Spot Light
  • Cielux P1X Spot Light
  • Cielux P1X Spot Light
  • Cielux P1X Spot Light
  • Cielux P1X Spot Light
Cielux P1X Spot Light
Cielux P1X Spot Light
Cielux P1X Spot Light
Cielux P1X Spot Light
Cielux P1X Spot Light
Cielux P1X Spot Light
Cielux P1X Spot Light
Cielux P1X Spot Light
Cielux P1X Spot Light
Cielux P1X Spot Light

DOWNLOADS

Separator

SPECIFICATIONS

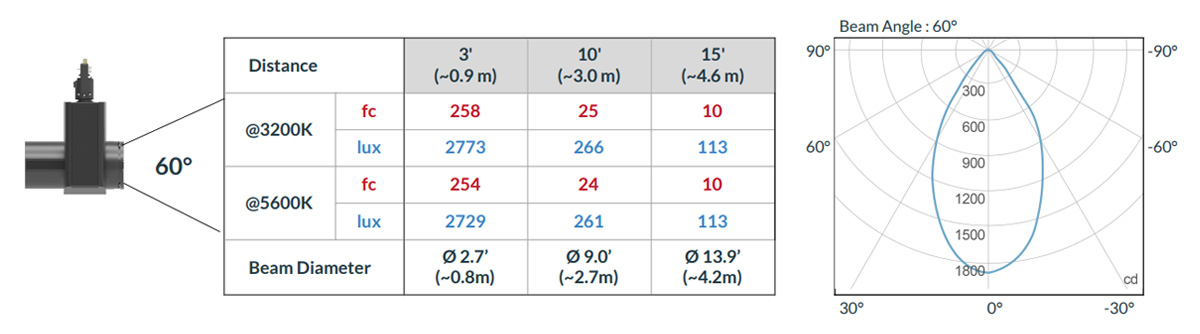

Beam Angle60°
CRI / TLCI 95/90 typical
Dimming 100% - 0% flicker free
AC Power Draw 40W max
AC Input 100 - 240V AC, 50 - 60Hz
Remote Control Manual, DMX 512
Cooling Passive Cooling
Acoustic Noise 0 dBA (none)
Operating Temp. 32 - 104ºF (0 - 40ºC)
Weight
(Fixture + Power Supply)
4.4lb / 2.0kg (PSP / PSV Type), 4.0lb / 1.8kg (PST / PSM Type)
Clamp Type DMX InputXLR5 Male and Female via TRRS Adapter (Included)
Separator

MECHANICAL FIGURES

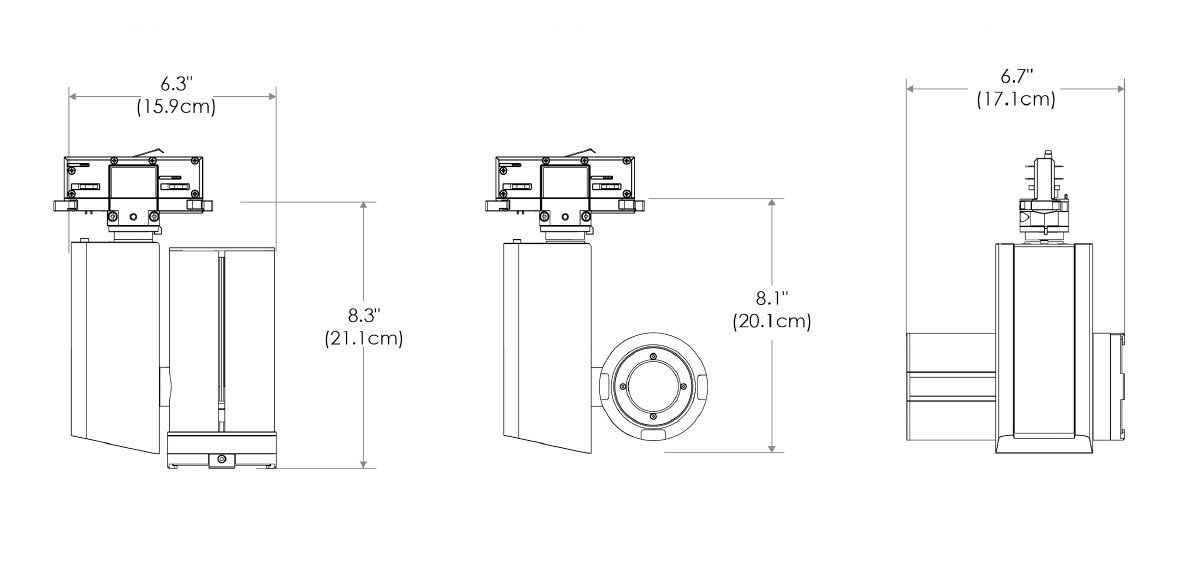

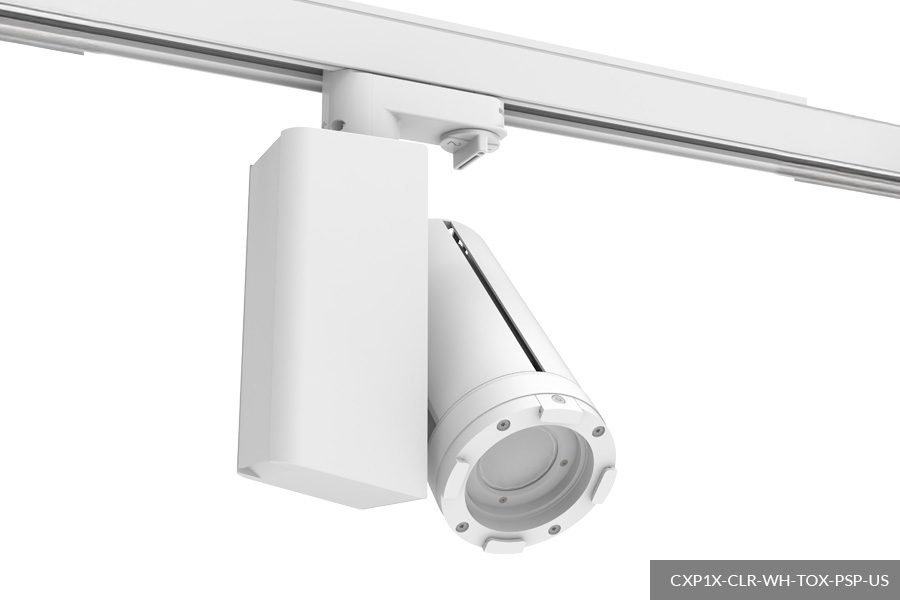

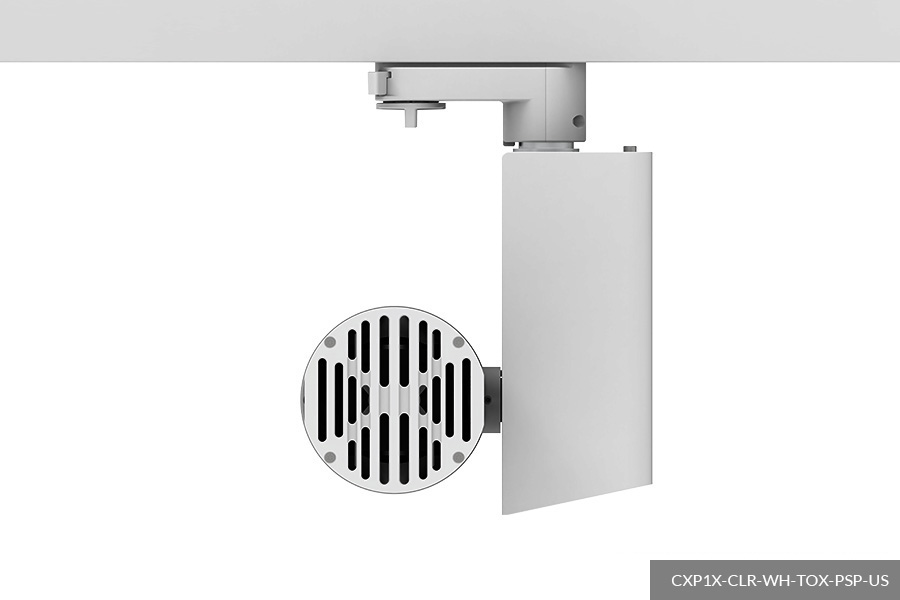

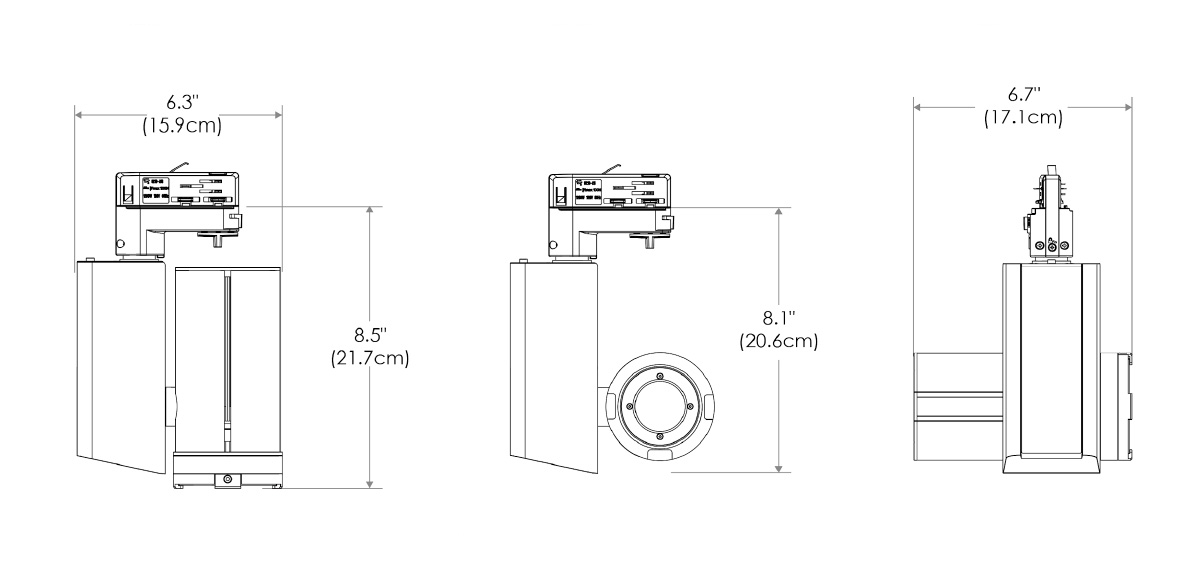

P1X (Track)

PSP

Cielux P1X Spot Light

PSP

Cielux P1X Spot Light

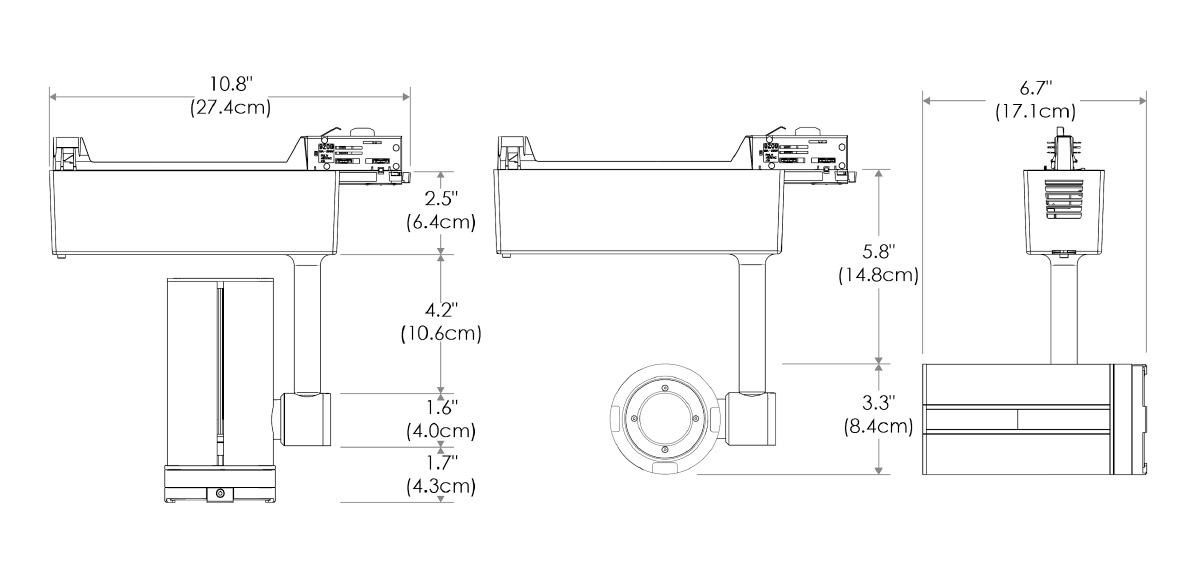

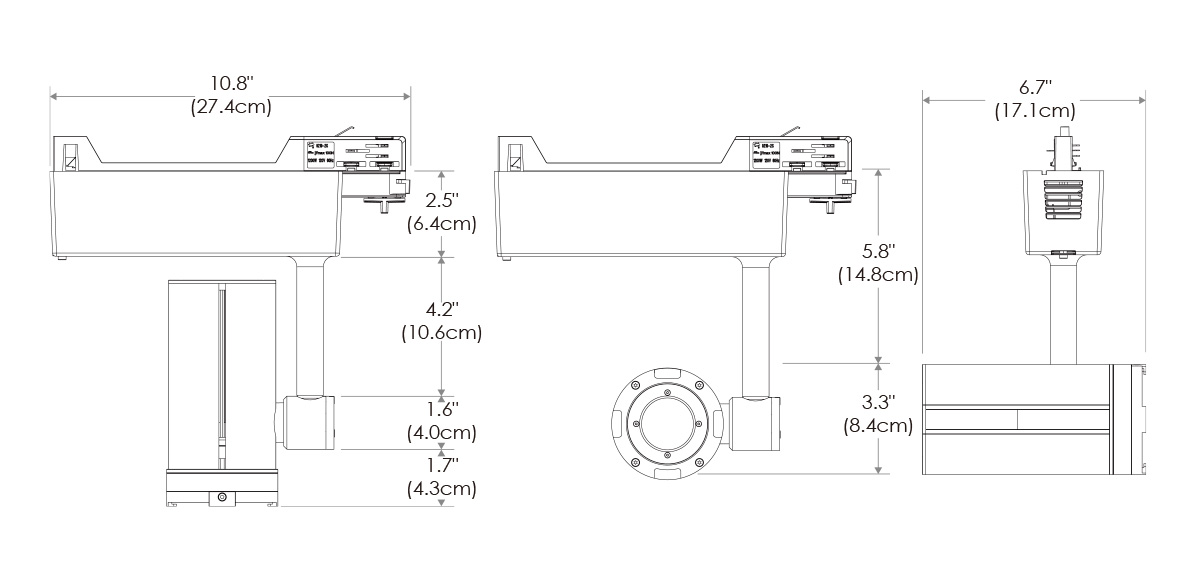

PST

Cielux P1X Spot Light

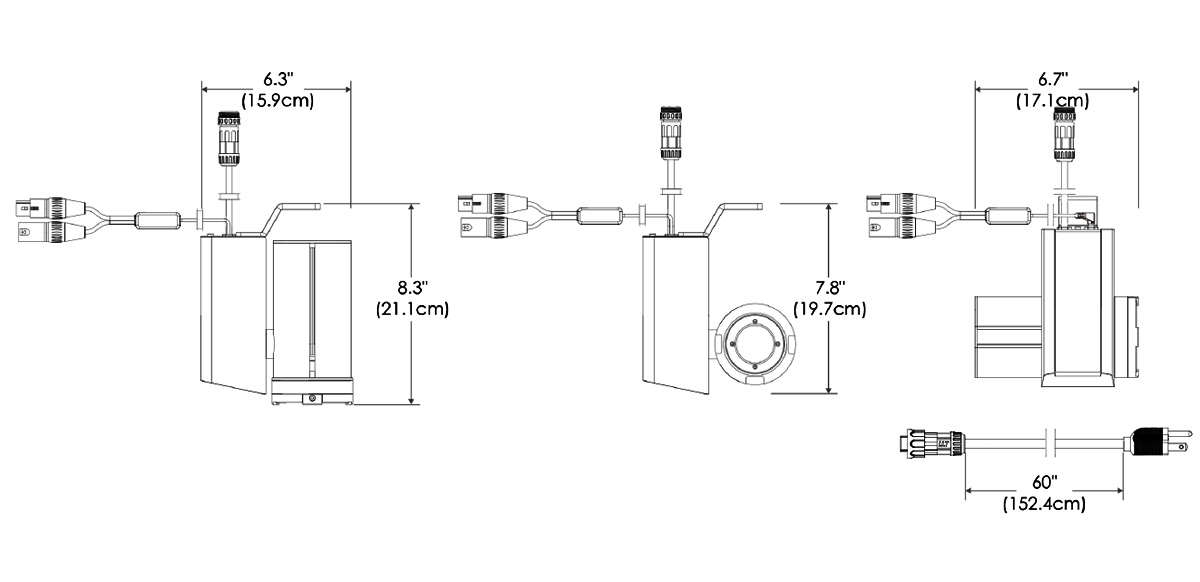

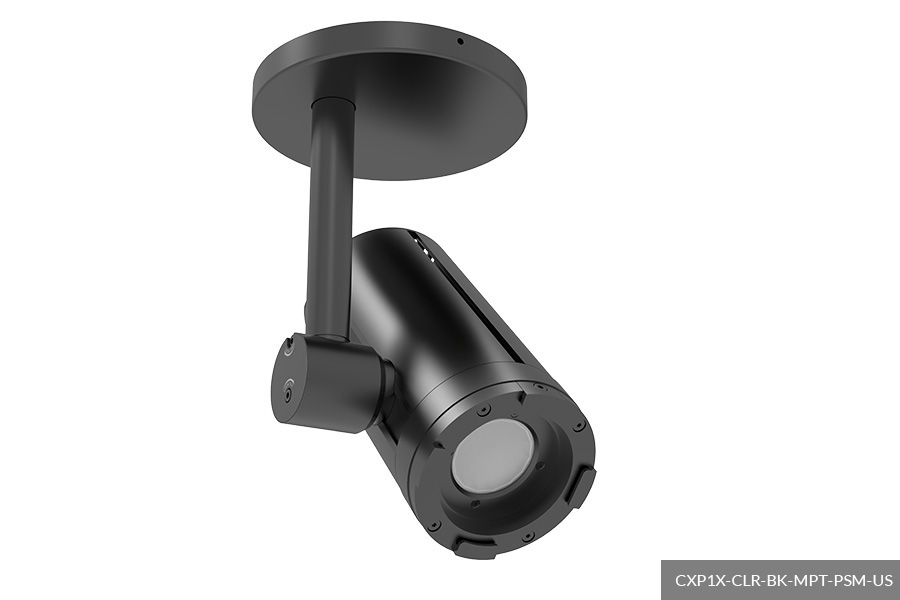

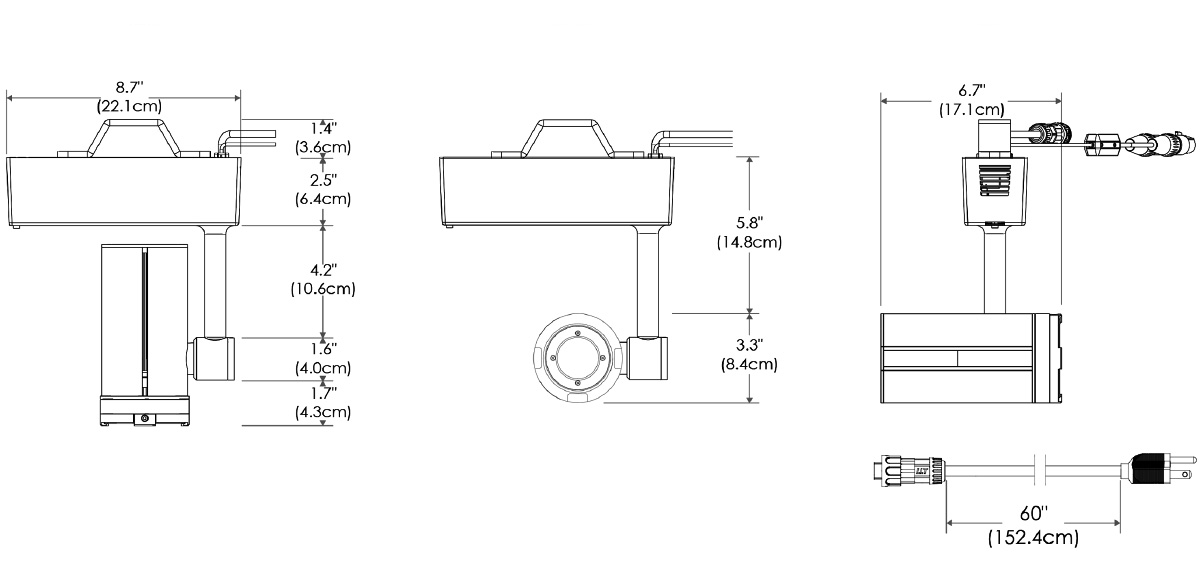

P1X (Clamp)

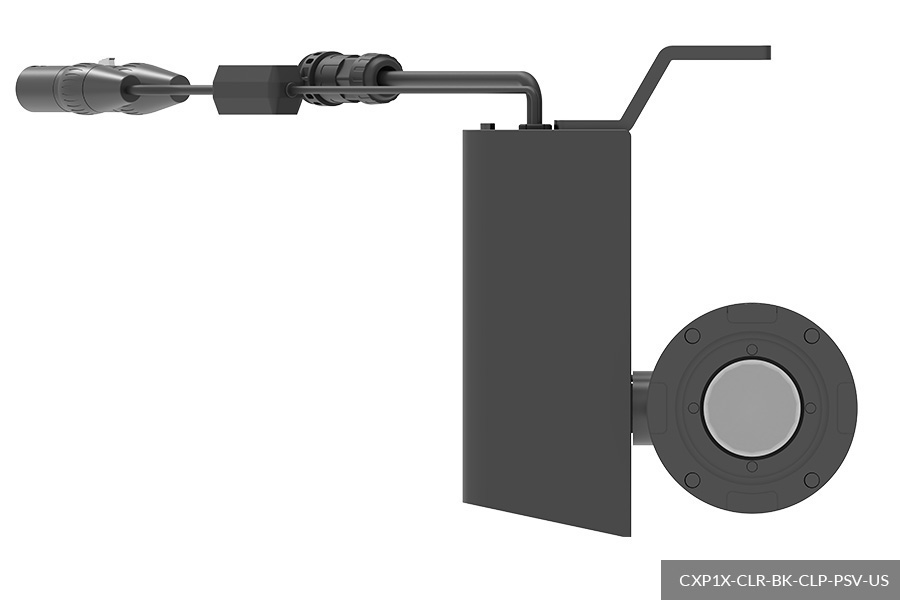

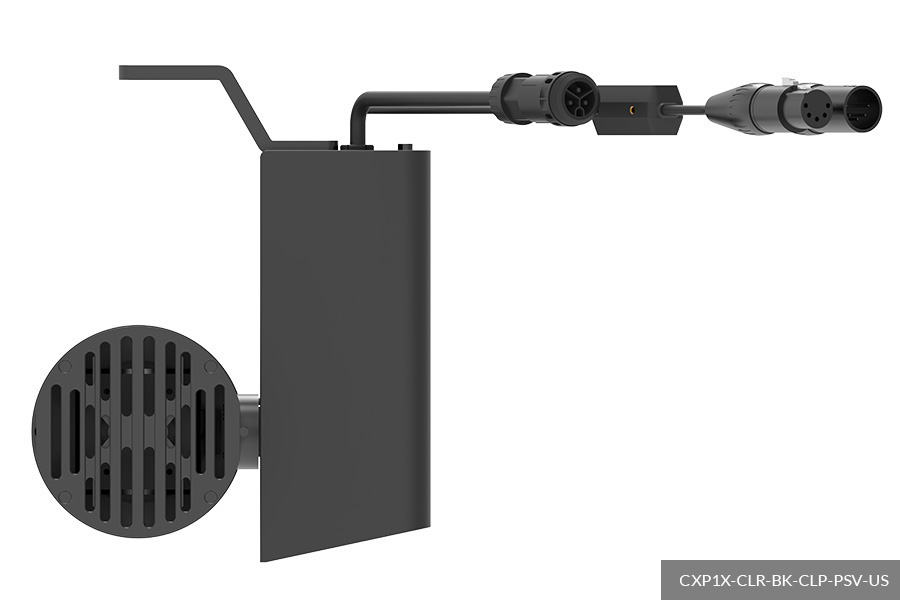

PSV

Cielux P1X Spot Light

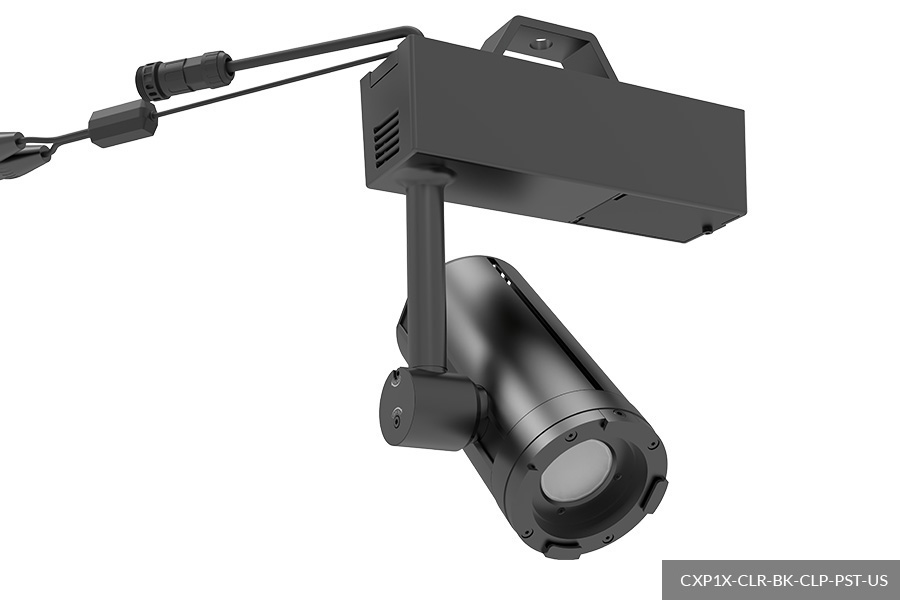

PST

Cielux P1X Spot Light

*All -CLP configuration models come with standard DC cables of 16" and AC cables of 5'.

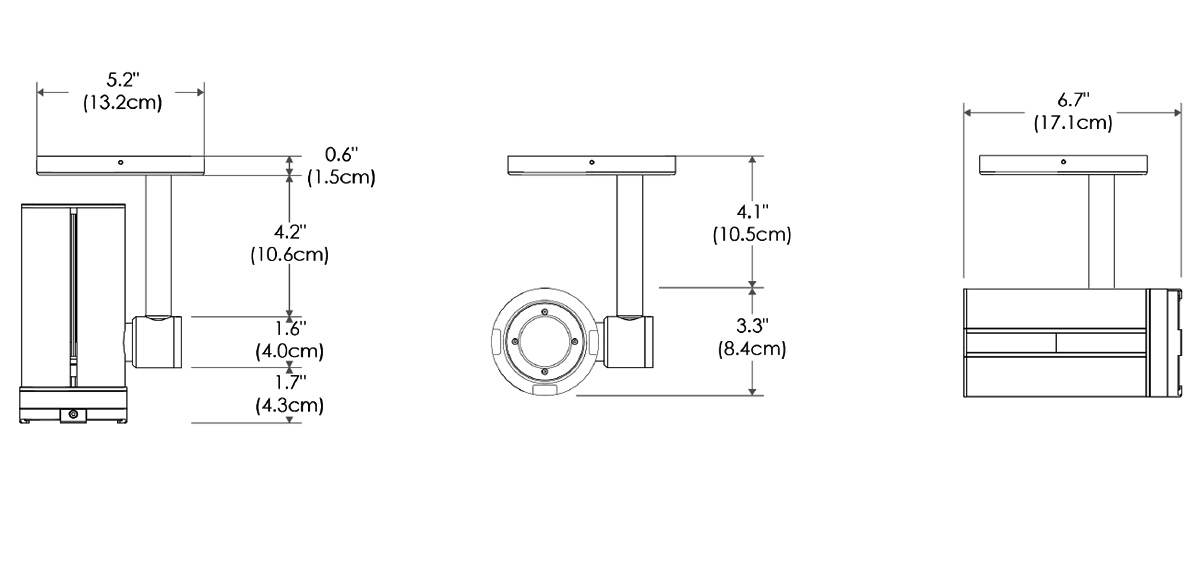

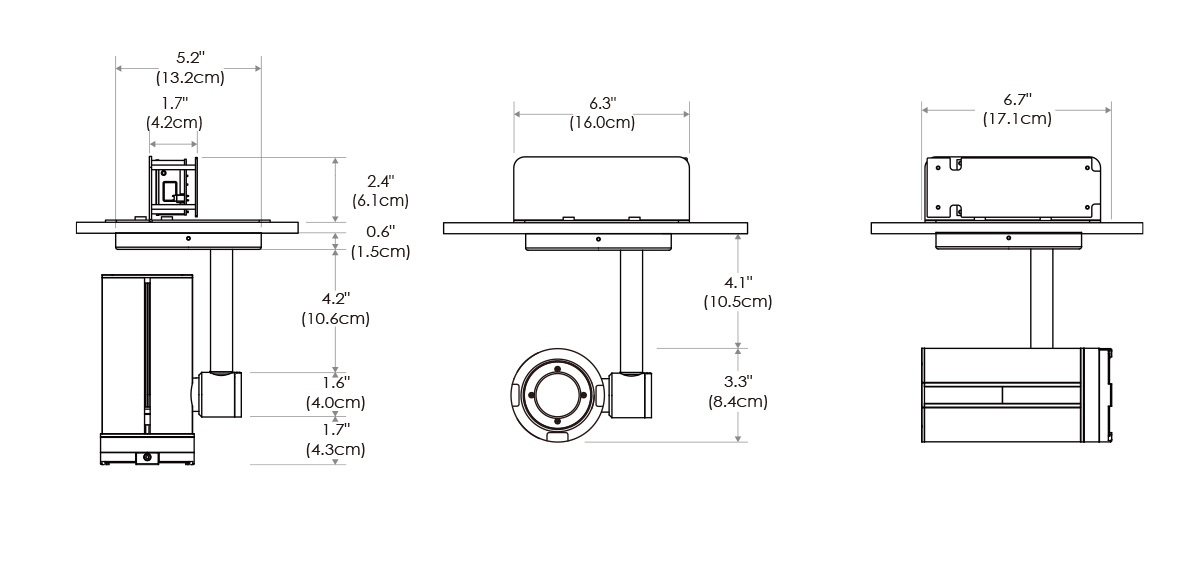

PSM

Cielux P1X Spot Light

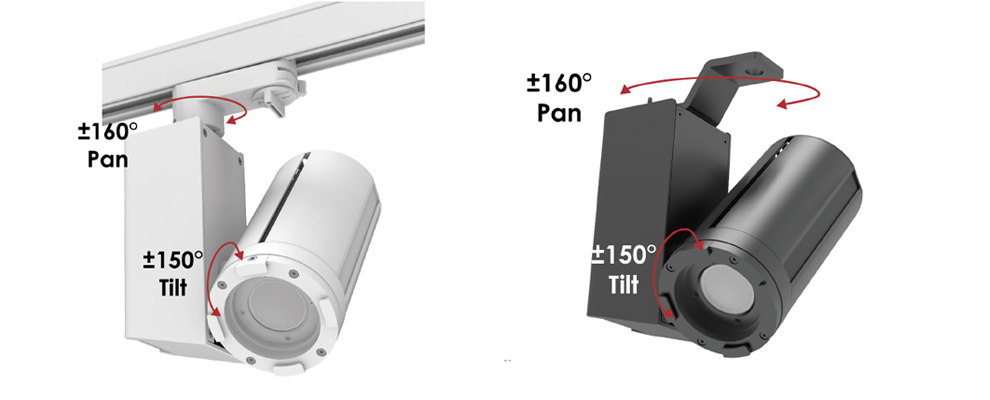

TILT/ROTATION

Cielux P1X Spot Light
Separator

ITEMS INCLUDED

Track Type

Cielux P1X Spot Light

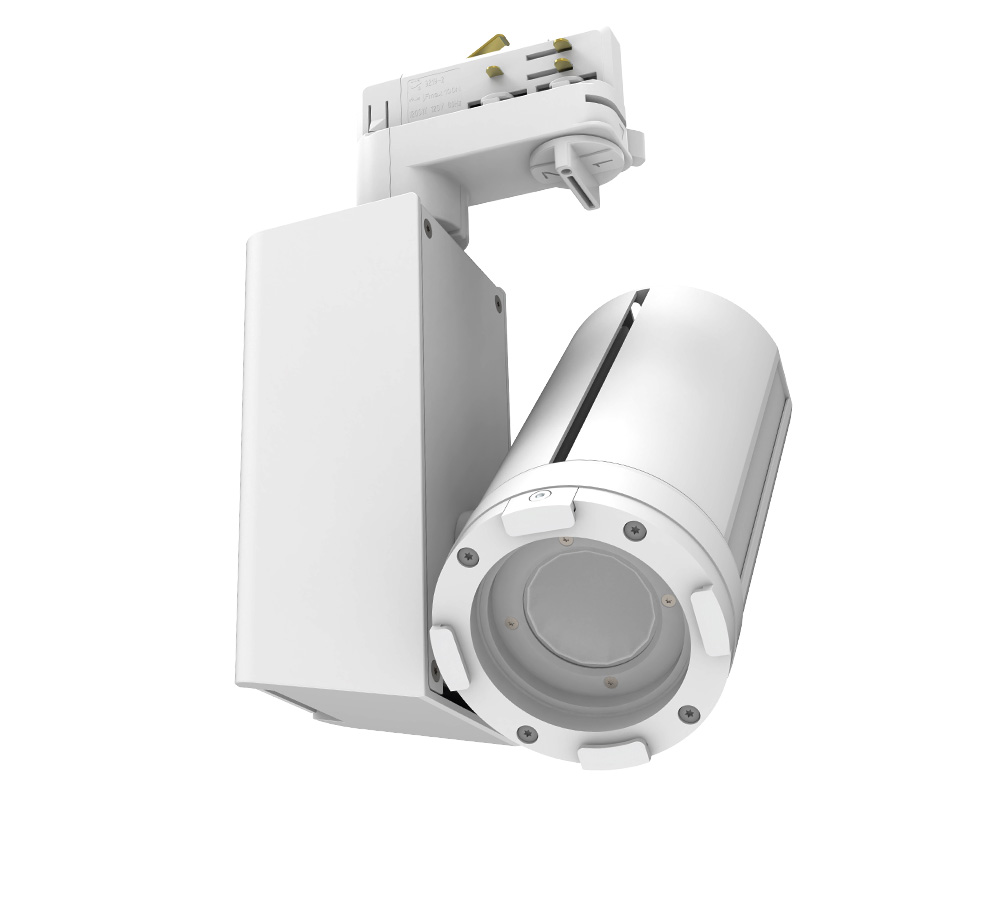

P1X (Track) fixture


Clamp Type

Cielux P1X Spot Light

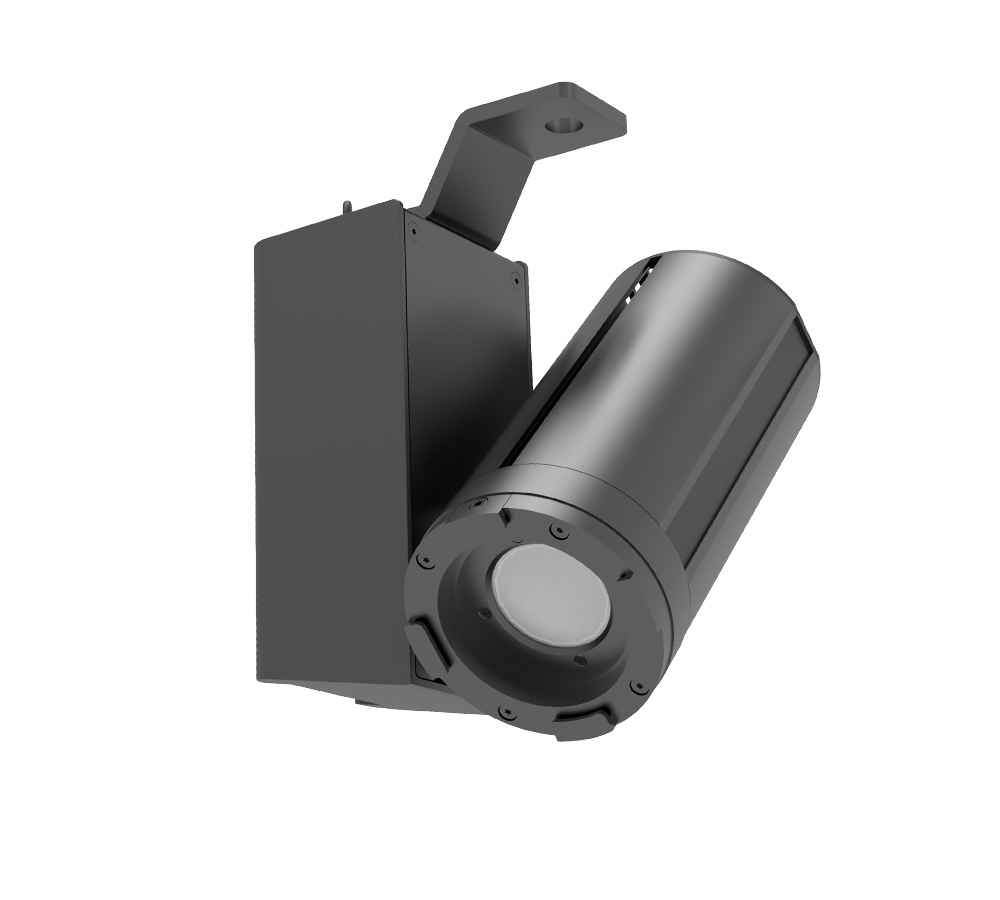

P1X (Clamp) fixture + PSU

Separator

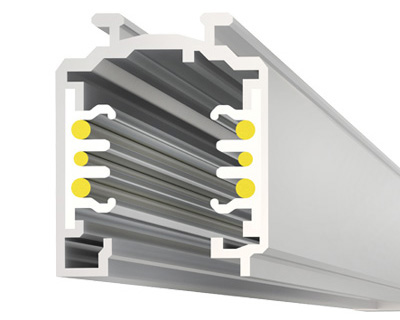

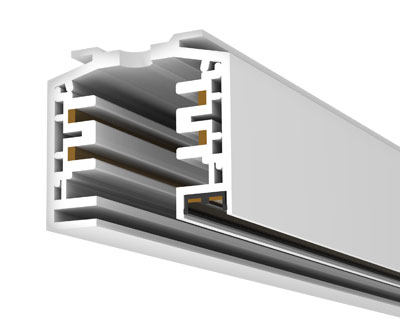

TRACK PARTS
