E-Type 2 Circuit Track w/ DMX

Cielux E-Type Track

Cielux E-Type Track

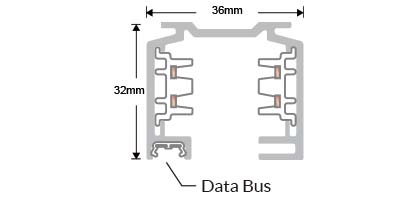

Specification

Track Type: Surface Mounted Track (commercial grade)
Color Options: Black / White
Segment Length: 4ft / 8ft / 12ft
Mounting Points: 0.25" x 1" Slot Per 8"

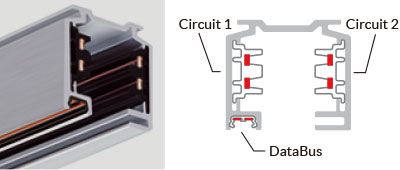

Conductors:
7 (2 per circuit, 2 for DataBus 1 for ground)
Circuits: 2 (20A max per circuit)
DataBus: 22 Gauge Nickel Plated Copper
Number of DMX Fixtures: 30 Max
Max Load: 22lbs (per foot of track)

Separator

Features

Cielux E-Type Track

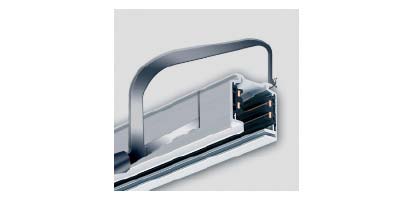

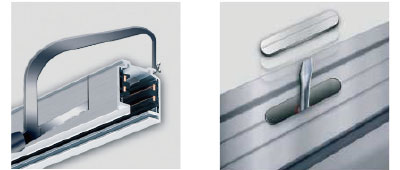

Custom Lengths

Track segments can be cut on location

Cielux E-Type Track

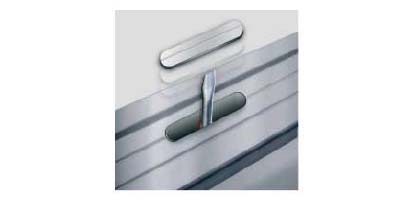

Mounting Points

Pre-drilled slots for easy mounting

Cielux E-Type Track

Remote Operation

The Data Bus supports up to 30 devices

Separator

Track Essentials

The simplest setup consists of:

DMX Track Segment(s) cut to the appropriate length
End Feed that connects power & carries DMX signals
DMX Terminator to prevent signal interference
Another End Feed for future track extensions (OR an End Cap )

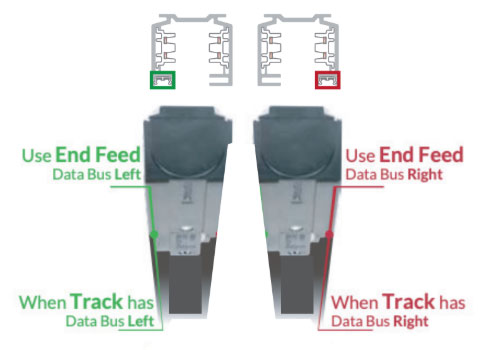

Select components based on DataBus orientation

Cielux E-Type Track

Separator

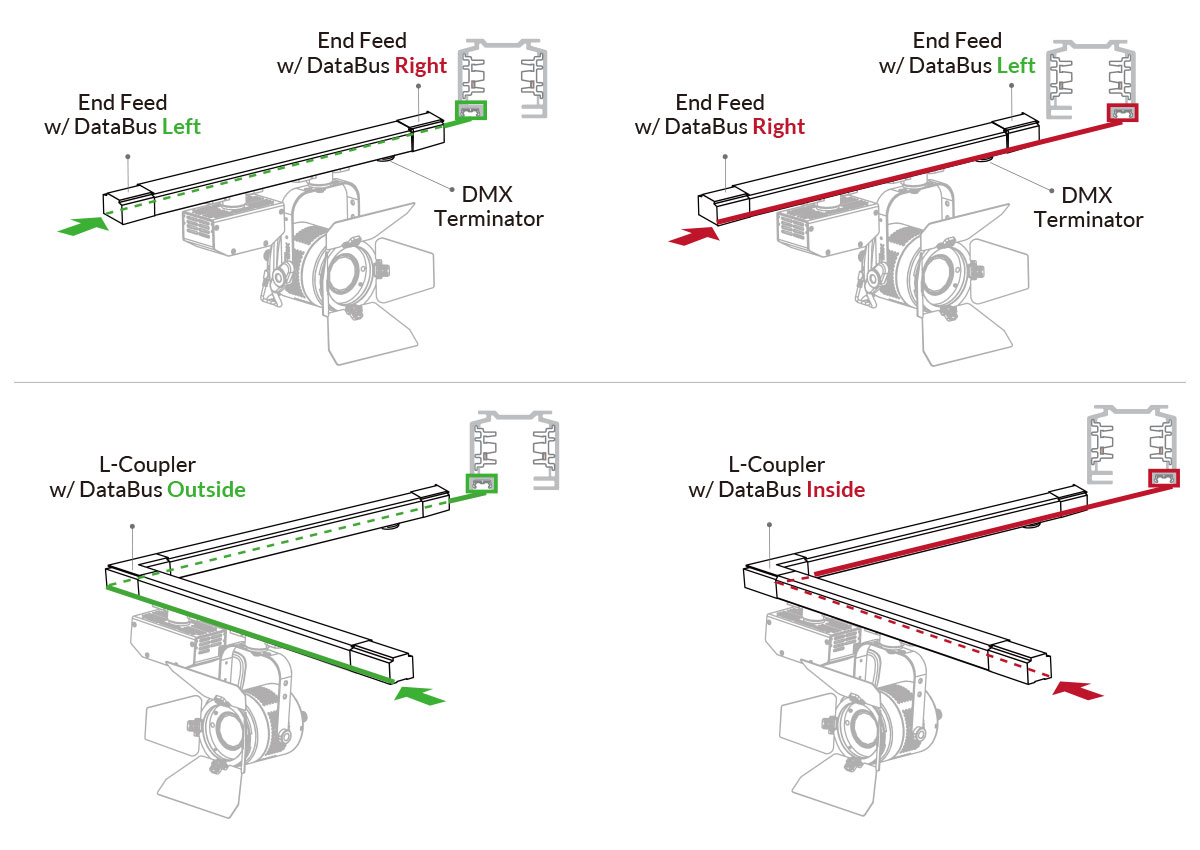

Examples

Cielux E-Type Track

Separator

Components

Feeders — supply power to the track

Cielux E-Type Track

End Feed

Data Bus Left

BLACK: 553-2-1202-2

WHITE: 553-2-1202-6

Conductors on left

Cielux E-Type Track

End Feed

Data Bus Right

BLACK:553-2-1201-2

WHITE:553-2-1201-6

Conductors on right

Cielux E-Type Track

Straight Coupler with Feed

Data Bus and Power Feed

BLACK: 553-2-1208-2

WHITE: 553-2-1208-6

Can be oriented to right or left

Couplers — connect segments of track together

Cielux E-Type Track

L-Coupler

Data Bus Outside

BLACK: 553-2-1209-2

WHITE: 553-2-1209-6

Conductors on outside

Cielux E-Type Track

L-Coupler

Data Bus Inside

BLACK: 553-2-1210-2

WHITE: 553-2-1210-6

Conductors on inside

Cielux E-Type Track

Flex Coupler

Data Bus and Power Feed

BLACK: 553-2-1211-2

WHITE: 553-2-1211-6

30° - 330° mobility range

Cielux E-Type Track

Straight Coupler

Data Bus Only (No Power Feed)

BLACK: 555-2-1206-2

WHITE: 555-2-1206-6

Can be oriented to right or left

DMX Control

Cielux E-Type Track

DMX Terminator

BLACK: 99-762-2

WHITE: 99-762-6

Prevent signals from rebounding

NOTE: DMX lines should always be terminated in order to eliminate noise and flickering

Covers — hide wires and conductors from view

Cielux E-Type Track

Canopy Cover

Data Bus Outside

BLACK: 198-60-0003-2

WHITE: 198-60-0003-6

Placed mid-feed to cover excess wires

Cielux E-Type Track

End Cap

BLACK: 555-0-1217-2

WHITE: 555-0-1217-6

Placed at end of track

*The red line indicates the DataBus orientation

Separator

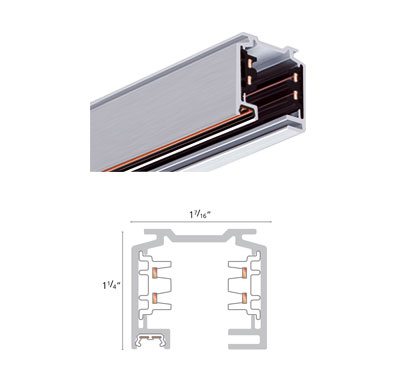

Track Segments

120V, 2 Circuits with Data

4FT

BLACK : 233-102

WHITE : 233-101

8FT

BLACK : 233-202

WHITE : 233-201

12FT

BLACK : 233-302

WHITE : 233-301

Separator

Downloads

Data Sheet
